Designing a plastic injection mold is a critical process that directly impacts product quality, production efficiency, and cost-effectiveness. As a professional plastic injection mold manufacturer, Wanjiada combines engineering expertise with practical experience to deliver molds that meet precise client requirements. Below is a step-by-step guide to designing an effective plastic injection mold:

Product Analysis and Requirements

Understand the Part Design: Review the 3D CAD model of the plastic part and identify signific💫ant feat🐠ures (e.g., wall thickness, undercuts, ribs, and bosses).

Material Choice: Choose the right plastic resin (e.g., ABS, PP, PC) ba🐲s𒐪ed on part function, strength, and environmental use.

Surface finish and tolerances: Define the surface textuꦬre (e.g., glossy, rough) and the dimensioღnal tolerances to make the end product meet specifications.

Determine the Mold Type and Structure

Mold Type: Decide between a two-plate mold (♒simpler) or a three-plate plastic inj😼ection mold (complex parts with multiple gates).

Cavity Layout: Optimize the number of cavities based on production volume and part geometry. Multi-cavity molds increase effici𒁃ency but require precise balancing.

Parting Line (PL): Design the parting line to minimize flash and ensure smooth ejection. The PL location depends𓆉 on part geometry and aesthetic requirements.

Gate and Runner System Design

Gate Type: Select the optimal gate (e.g., edge gate, submarine gate, hoꦇt runner) to control material ൲flow and minimize visible marks.

Runner Layout: Design balanced runners to ensure uniform filling of all cavities. Cold runners are cost-ef🧜fective, while hot runners reduce waste and cycle time.

Cooling System Design

Cooling Channels: Strategically place cooling channels near high-heat areas to ensure unif�ꦇ�orm cooling and prevent warping or sink marks.

Material Compatibility: Use corrosion-resistant materials (e.g., beryllium copper) 🦂🍨for inserts in high-wear zones.

Ejection System Design

Ejector Pins/Blades: Position ejectors🧸 to avoid part deformation and ensure smooth release.

Draft Angles: Incorporate draft angles (1–3°) on vertical walls to facilitate e🐭jection.

Venting and Surface Finish

Vents: Add micro-vents (0.02–0.04mm depth) to prevent air traps and𝔉 burning defects.

Texture and Polish: Apply surface💃 finishes (e.g., EDM, polishing) to meet aesthetic or functional🌱 needs.

Mold Material Selection

Choose durable materials like hardened steel (e.g., P20, H13) for high-volume production or aluminum for prototypes.

Prototyping and Testing

Trial (T0): Test the mold with short shots to val🅠idate filling, cooling, and ejection.

Adjustments: ꦡOptimi𒐪ze gate size, cooling rates, or venting based on trial results.

Why Choose Wanjiada for Custom Plastic Injection Molds?

At Wanjiada, we specialize in delivering high-performance, cost-effective molds tailored to your unique needs. Our advantages include:

• Expertise: 20+ years of experience in plastic injection mold design for industries like consumer goods, toys, and packaging Industry.

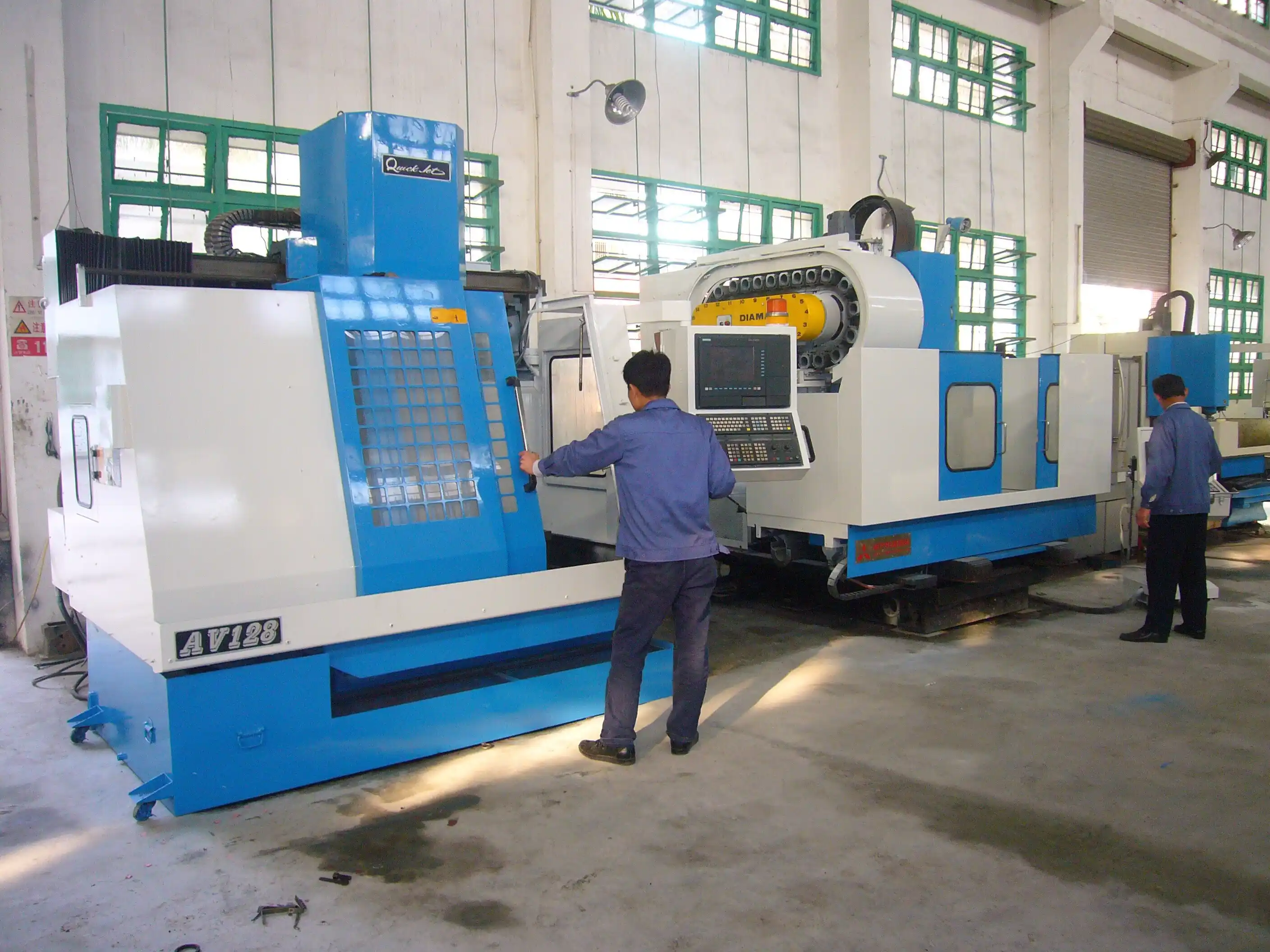

• Advanced Technology: State-of-the-art CNC machining, EDM, and CMM inspection for micron-level precision.
• Rapid Prototyping: Accelerate time-to-market with quick-turnaround prototype molds.
• Cost Optimization: Design molds for longevity (500k+ cycles) while minimizing material waste and cycle time.
• End-to-End Support: From DFM analysis to post-mold services, we ensure seamless production.

Partner with Wanjiada to transform your plastic part concepts into high-quality, mass-produced realities. Contact us today to discuss your project!
